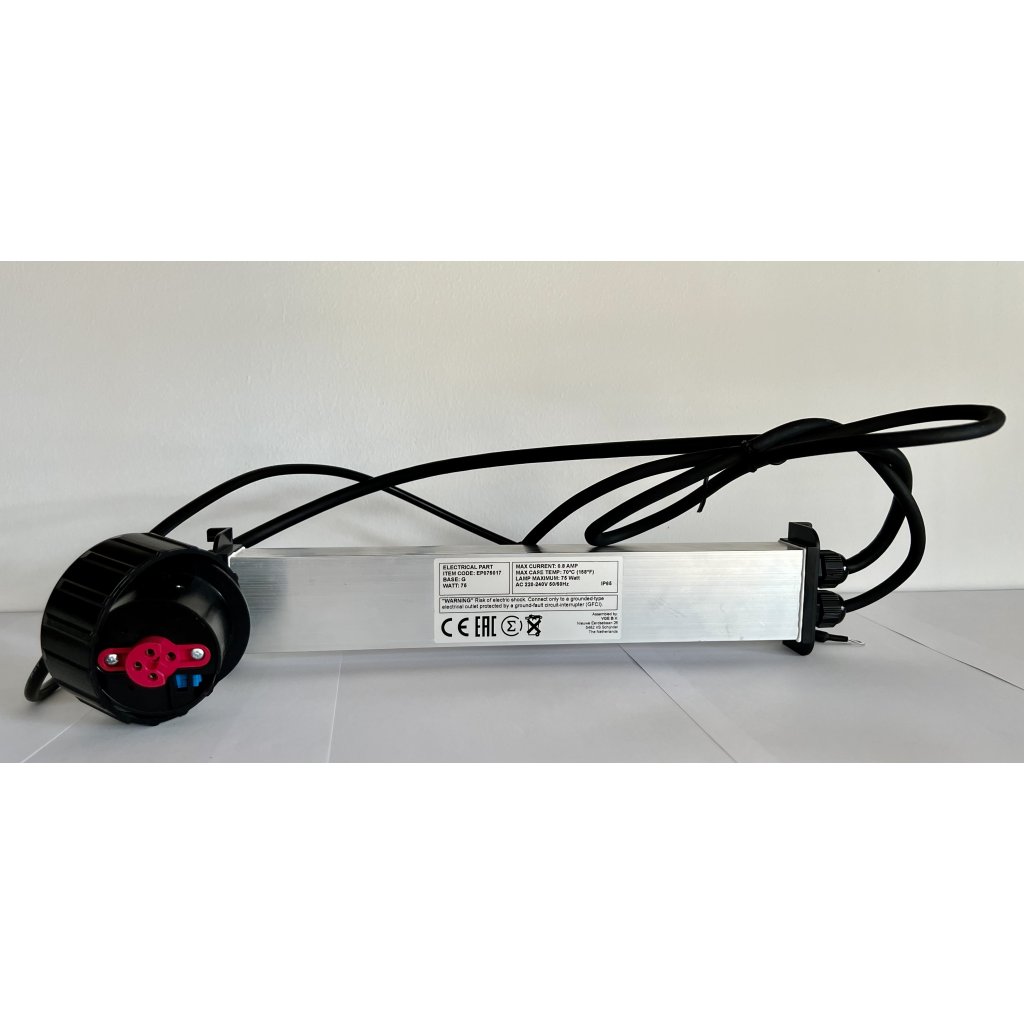

Transformer (transformer) + connector for UV lamp 75W (ECO Tech)

Product detailed description

Reliable source for UV sterilization

The transformer (transformer) together with the connector is an essential component for the proper functioning of the 75W UV lamp, which is used in ECO Tech, Xclear, Hanscraft and other systems. This replacement kit provides reliable power and is designed to meet the needs of modern UV water sterilizers.

Compatibility and versatility

Thanks to its versatile design, the transformer with connector is compatible with a variety of UV lamp types.</p

Innovations for safety and control

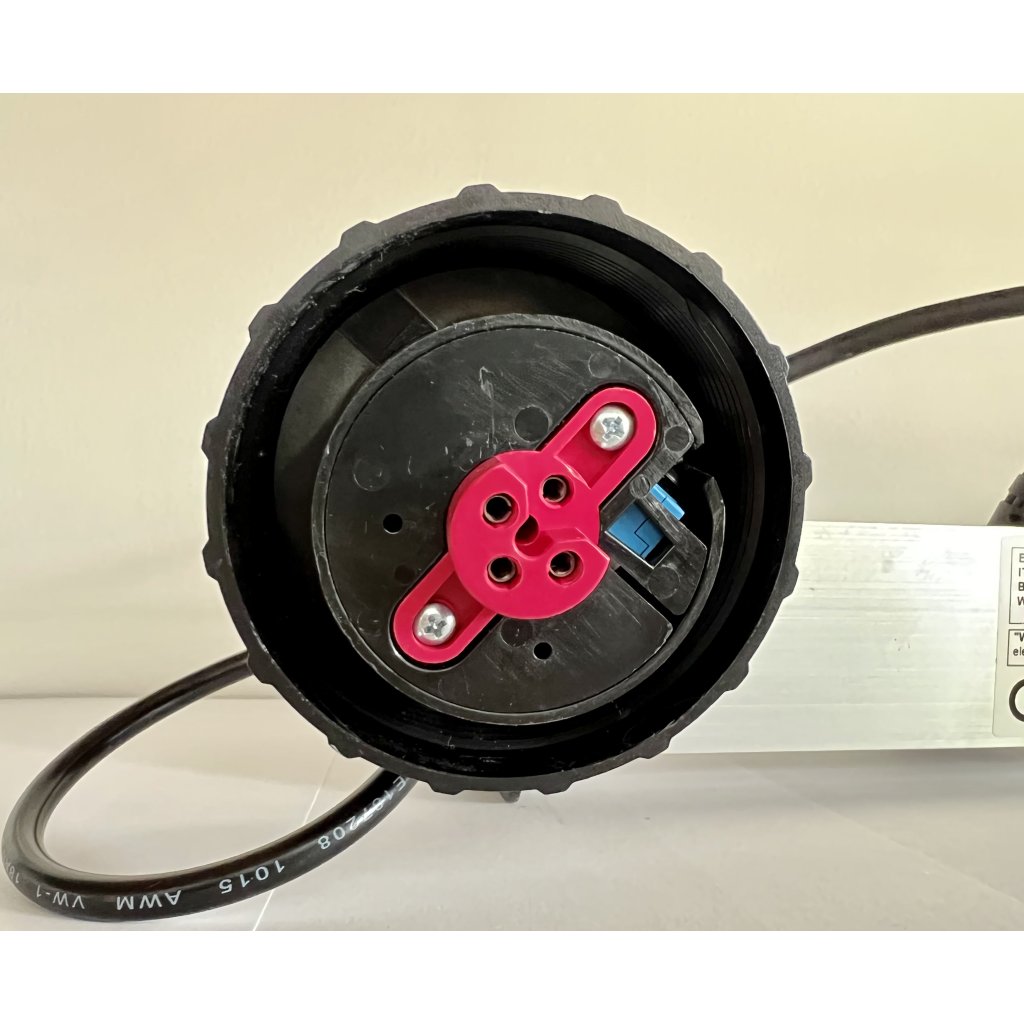

As of 2020, the transformer is equipped with a microswitch, which is a requirement of EU regulations. This micro-switch ensures that the UV lamp only illuminates when it is correctly installed and safe to use. For older lamp models that do not have a protrusion in the housing, a simple modification such as disconnecting the microswitch or permanently attaching it with a piece of plastic or wood may be required.

Applicable to this type:

Spare parts drawing - this is part G

The replacement source for the UV sterilizer is a special bulb that emits intense UV radiation when lit. The lamp is hermetically sealed in a housing that does not let the UV rays through. UV radiation is lethal to the vast majority of organisms. We use it to destroy algae, parasites, fungi, viruses, yeast and bacteria contained in water without the use of chemicals. Ultraviolet radiation is invisible electromagnetic radiation (one of the regions of the electromagnetic spectrum) with a wavelength of 4-400 nm and a frequency of 1,015-1,017 Hz. It is part of the solar spectrum (less than 5%) and is located between visible solar radiation and X-rays. Ultraviolet radiation is composed of 3 components: UVA, UVB, UVC. Lamp life 9 000 h.

Not sure if this is the right model? Call us!
