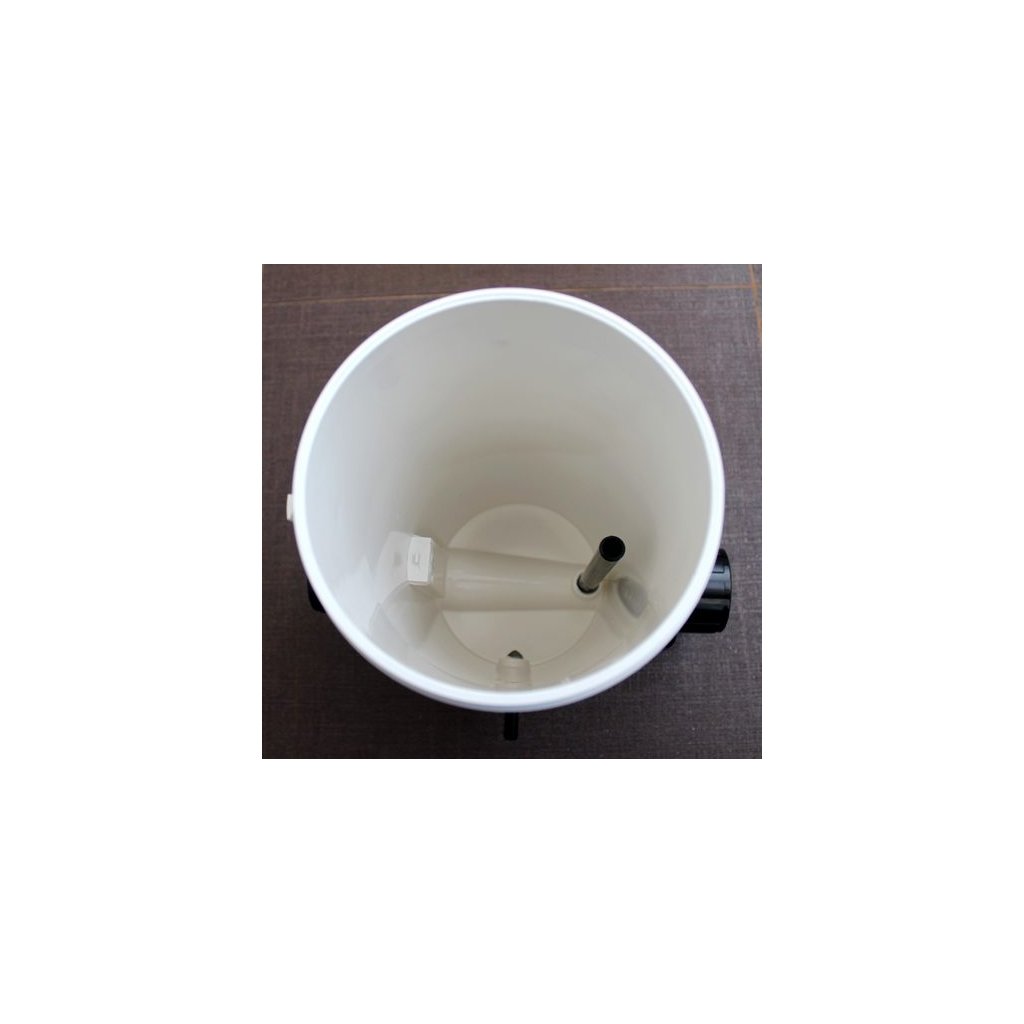

Replacement plastic body for tubing chlorinator - CL200G - Astral pool
Code: 80168
Related products
Product detailed description
Pool Specialist Opinion - Review
- + Simple chlorine flow control
- + Easy installation and maintenance
- + Suitable for various pool systems
- + Robust and durable material
- - Need to follow safety precautions when handling chlorine
"Astralpool's replacement body is a reliable and effective solution for maintaining pool water clarity and quality. Its semi-automatic function and easy installation make this product an excellent choice for pool owners."
Team Poolservis
The Astralpool Chlorinator is ideal for those looking for a practical solution for keeping their pool water clean. Its ability to regulate the amount of chlorine and ease of installation make this device a reliable helper for any pool owner.
Chlorine Dispenser - Chlorinator Installation Instructions:
1) Install the dispenser on the filter branch last (i.e. after the filtration, UV lamp, solar heating, heat pump...)Connecting to the tubing only requires drilling the pipe supplying the filtration - in front of the vessel (this will be used as the inlet to the chlorinator) and on the outlet last.
2)Install the injection and intake of the dispenser on the filtration branch last (i.e. after the filtration, UV lamp, solar heating, heat pump...). Always suction first and injection half a meter further.
If you are placing the chlorinator below the pool level, you need to install a closing valve behind and in front of the pool to prevent water from pouring out when the lid is opened
.
| Parameter | Value |
|---|---|
| Chlorinator height | 405 mm |
| Chlorinator width | 285 mm |
| Centre of chlorinator pipe from ground | 70 mm |
Dispenser heating
Before opening the dispenser, allow water to flow through the dispenser for 15 minutes. 6.2 Turn off the pump and set the control valve to the "OFF" position. Close the taps in the recirculation circuit to prevent water from flowing out of the pool. Wait approximately 1 minute and then unscrew the dispenser lid. 6.3 To do this, press the safety catch and unscrew the lid nut counterclockwise. Do not breathe chlorine vapours released from the dispenser!!!
7. REFILLING TABLETS INTO THE DISPENSER
Check the level of tablets in the dispenser weekly. Refill the dispenser with new 200g tablets as needed according to the following procedure. 6/6 - 7.1. Using the drain valve, release 2/3 of the water from the dispenser and carefully insert the tablets. 7.2 Refill the water up to 1cm below the edge of the dispenser body. 8. Tighten the lid clockwise by hand. 8.2 Adjust the control valve to the required position. Open all taps and start the pump.
The amount of chlorine flow can be regulated or completely shut off by the control valve.
Additional parameters
| Category: | Náhradní díly na chlorátor Astralpool hadičkový + na potrubí |
|---|---|
| Weight: | 2 kg |
| Značka: | Astralpool |
