Pool pump Micro Delfino 50 - 10m3/h - for salt water

Product detailed description

Reliable and durable pool pump

Designed for efficient cleaning and circulation of water in small family pools, the Micro Delfino 50 pool pump is characterised by its high durability and reliability. Its hardened polypropylene body and AISI 316 stainless steel components guarantee a long service life and minimal maintenance.

Easy installation and maintenance

The pump is designed for easy installation. We recommend installing this pump below the pool level so that it does not have to pull water higher up on the suction side. Displacement of the pump on the solar panel is not an issue.  If you are installing above the surface, we strongly recommend the use of a backflow preventer on the intake. A hair pre-filter and easy access to the cleaning basket make pump maintenance quick and easy.

Optimised for performance and safety

The pump is designed for maximum performance and safety. It offers a stable water flow of 10m3/hr, which is ideal for pools with a volume of 30 m3. With an IP55 rating, the pump is protected against water and dust, increasing its safety and durability.

Flexible and hassle-free installation

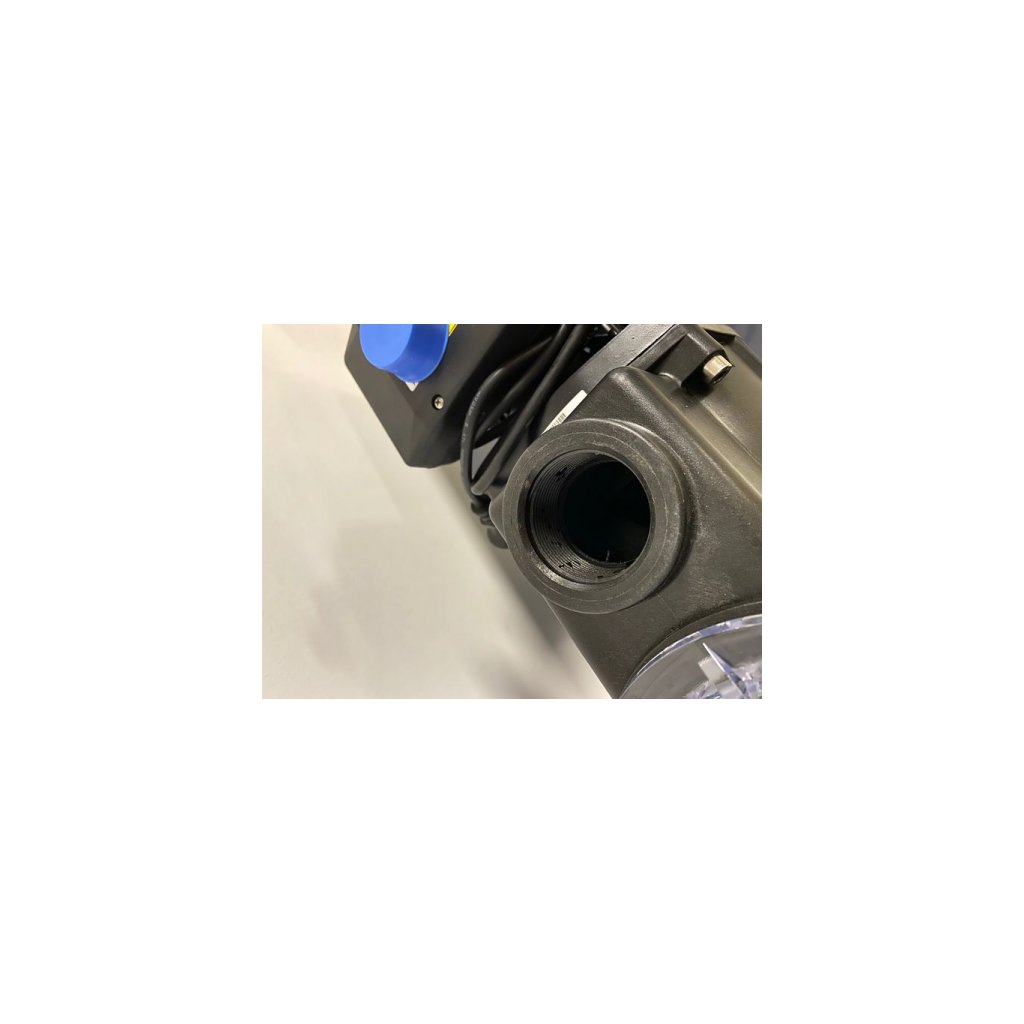

Installation of this pump is simple and flexible. The 1 1/2" threaded connection makes it compatible with common piping systems.

Quality and Satisfaction Guarantee

Each Micro Delfino 50 pump is thoroughly tested, which is guaranteed by the enclosed test sticker. This guarantee of quality and reliability means you can expect long-term satisfaction and trouble-free operation of your pool system.

Pump features

• Each piece is tested
• Glass fibre reinforced polypropylene pump body and diffuser give superior durability
• Transparent pre-filter cover makes it easy to check for strainer clogging
• Easy access to clean the basket
• Pump axis is not in contact with the pumped water

Which pool pump to choose

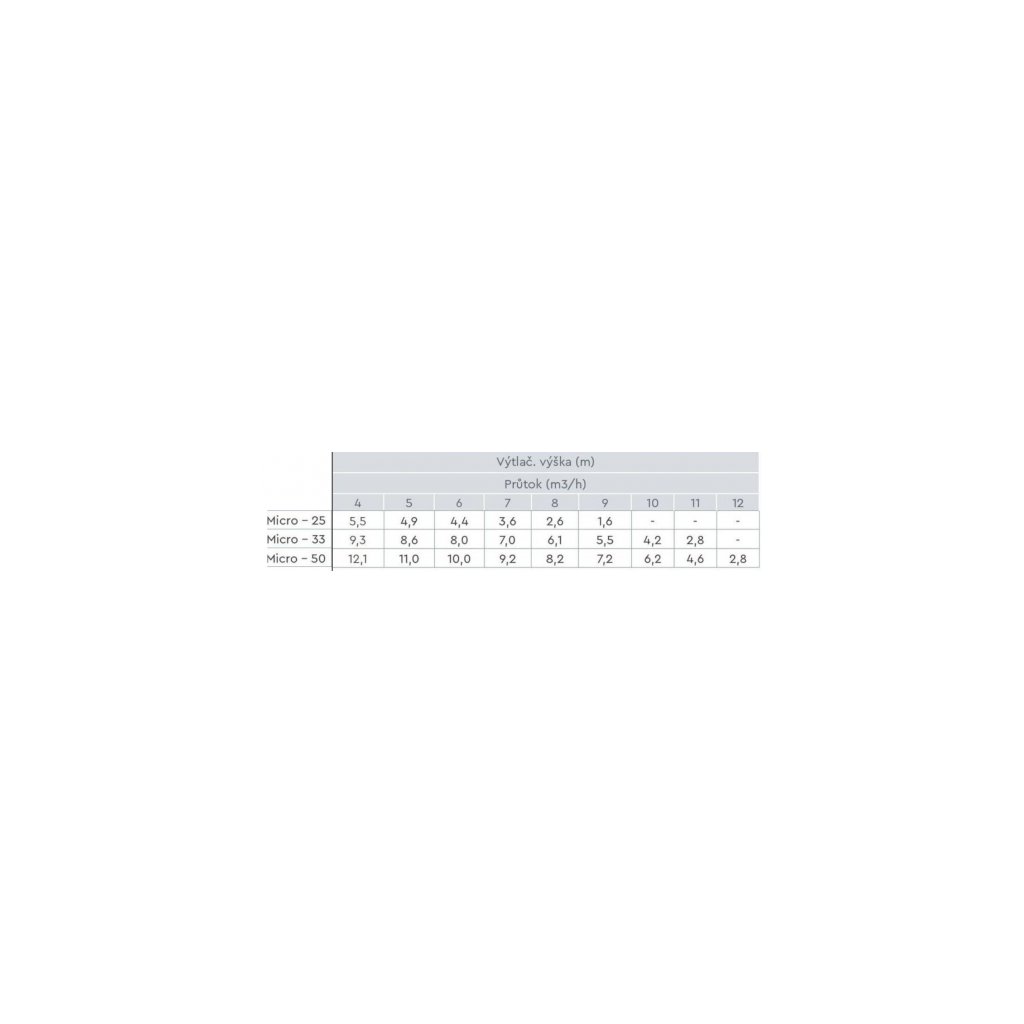

The table below can help you choose the right pump for your pool. The pool should flow through the pump about once every 3 hours, so that you can filter for 6 hours a day outside the hottest days.

If the pump will be close to the pool (within 2-4 metres) follow the first column.

If you will have the filtration with the pump in your garden house or garage about 10 meters away, we recommend this pump for pools of 20-25m3

Package includes:

Pump including pre-filter and lid

English instructions

When installing the Micro delfino pool pump you could use:

You can connect the pump to the pool circuit using, for example, 50mm tubing or flexi hose 50mm. Screw-in fittings. We also recommend inserting a pool-ball-valve 50mm before and after the pump, especially if the pump is below the pool level. This will prevent the whole pool from leaking out when handling the pump. Use pvc pool joint adhesive

to adhere.

Installation:

The pump must be mounted on a solid and smooth surface.The pump must be properly
fixed using the two attachment holes in the pump leg using two suitable
screws or threaded bolts to prevent noise and oscillation that can
interfere with the pump's operation.</p

The pump should be protected from possible flooding, proper ventilation should be ensured and
freeze should be avoided.If the pump is installed outdoors, it should
be protected from rain.

It is recommended to have closing valves on both the suction and pressure sides, so that the pump can be removed if necessary without draining the entire pipeline.</p

The suction pipe must be at least the same diameter as the pump inlet. On the pressure side, it is
recommended to connect a pipe of the same diameter as the pump outlet.
The suction pipe must be laid with a slight incline to the pump to prevent the formation of
air cushions.

After winterizing the pool it is recommended to put the pump in a dry area with a constant temperature (garage, etc.), this will extend the life of the pump, it will not rust as in a wet sump by the pool when it is cold in autumn and freezing in winter.
