Asin Aqua Redox NET - dosing machine chlorine + pH

Product detailed description

Connecting ASIN AQUA Net to the Internet

The ASIN AQUA Net's LAN connector connects to your home router, allowing data to be sent every 10 seconds to pool.aseko.com. It is important that the path is not blocked by a firewall, with an average data consumption of around 0.1 GB per month. Basic IT knowledge is required to connect, or we recommend leaving the connection to an IT specialist.

Internet connection options

Home network: The ASIN AQUA Net can be connected to a home router using a LAN cable.

Mobile network: In the absence of a direct Internet connection, it is possible to use a mobile data network via a 3G/LTE router.

Wifi connection: For devices outside the range of the home network, a Wifi extender can be used to connect to the wireless network.

Connection via 230V powerline: In situations where neither the local or Wifi network is available, a 230V powerline adapter can be used to connect to the local network if the ASIN AQUA Net and the home are on the same phase of the power distribution board.

ASIN AQUA Net and Aseko Web Services

The ASIN AQUA Net easily connects to the Internet using the integrated LAN adapter. This allows you to monitor your pool data via the web at pool.aseko.com or through the Pool Live app.

Aseko Pool Live App

The Aseko Pool Live app for iOS and Android offers a detailed overview of your pool's status from anywhere you have internet access. ASIN AQUA Net will automatically send you an alert if your set limits are exceeded or a system error occurs. With the app, you can also conveniently monitor the amount of chemicals in your canisters and order replacements in a timely manner.

Asin Aqua Redox - chlorine + pH dosing machine

If you are looking for a reliable solution for automatic dosing of chemicals in your pool, pond or hot tub, then this automatic dispenser offers exactly what you need. With an output of 60 ml/min and the ability to operate at pressures of up to 1 bar, this high-performance peristaltic pump is ideal for handling the aggressive chemicals that are essential for maintaining clean and safe water.

It's exceptional construction and design ensure not only long life but also consistent performance, making it a reliable partner for dispensing disinfectants and pH adjustment liquids in pools up to 250m³ in size. In addition, the pump is designed for easy installation and synchronisation with the circulation pump, ensuring that dosing only takes place while the pump is running, eliminating the risk of dosing errors.

Installation of Asin Aqua Redox - chlorine + pH dosing machine

Exact instructions are included with the dispenser, please follow them!

1)Installation of the Asin Aqua Redox requires careful site selection in a dry and dust-free environment with a temperature between +5 and +40°C to ensure optimal functioning and minimize the risk of damage. The accompanying holes on the pump's front cover and the supplied screws make wall mounting quick and hassle-free.

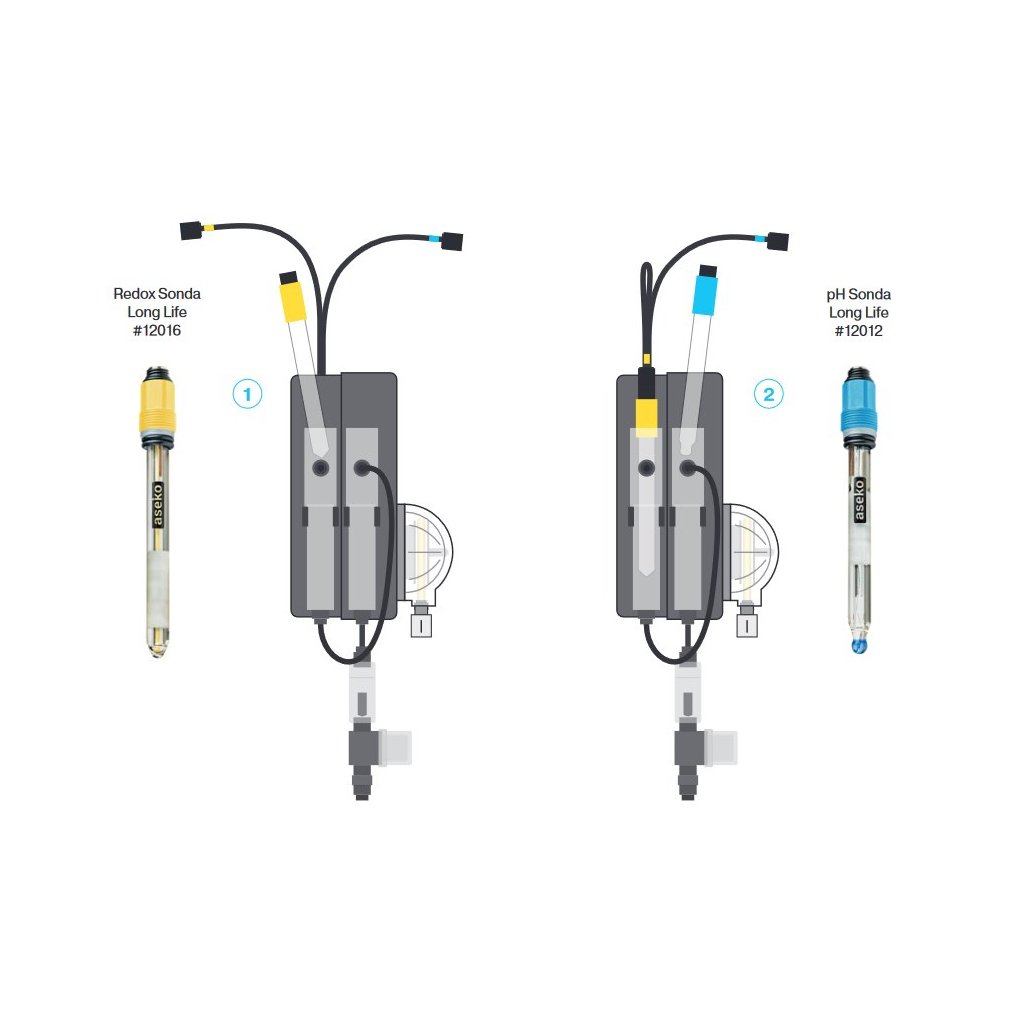

2)Install the probes into the dispenser manually - redox left, ph right. Tighten by hand or with the included wrench.

3)The pool water to be measured must be brought to the probe. Place the shut-off fitting in a D=50 plug with a G1/4" thread - For connection to the pipe, you need to buy 4x t-piece and 4x puck 1/4" to have somewhere to screw the probe circuit and injection piece. Tighten by hand only. Do not use pliers or other tools.

4) Likewise, screw 2x injection valves into the t-pieces and buds.

5)CONNECTING CANISTERS: Drill a 6.35 mm diameter hole and a 1 mm diameter hole (inlet) in the canister lid. Push the pipe through the cap. Select the length of the pipe so that it reaches the bottom of the canister and can be connected to the pump in the most direct way. Longer pipes in the canister will bend and create air bubbles. Place a suction basket (canister weight) on the pipe. PUMP CONNECTIONS: connect the pump suction on the left to the canister, connect the pump discharge on the right to the spray valve. Connecting the spray valves: Pull the pipe through the nut, thread the pipe onto the spray valve and tighten the nut firmly by hand.

Connecting the spray valve to the pump and metering agent is an essential step for efficient system operation. Following the correct installation procedure ensures tight connections and optimum chemical flow, which is key to keeping the water quality in your pool or hot tub at the highest possible level.

This makes the automatic system the ideal choice for anyone who requires a reliable, efficient and easy to use solution for keeping the water in their pools and hot tubs clean and safe. Its quality, performance and ease of maintenance guarantee satisfaction and long-term trouble-free use.
